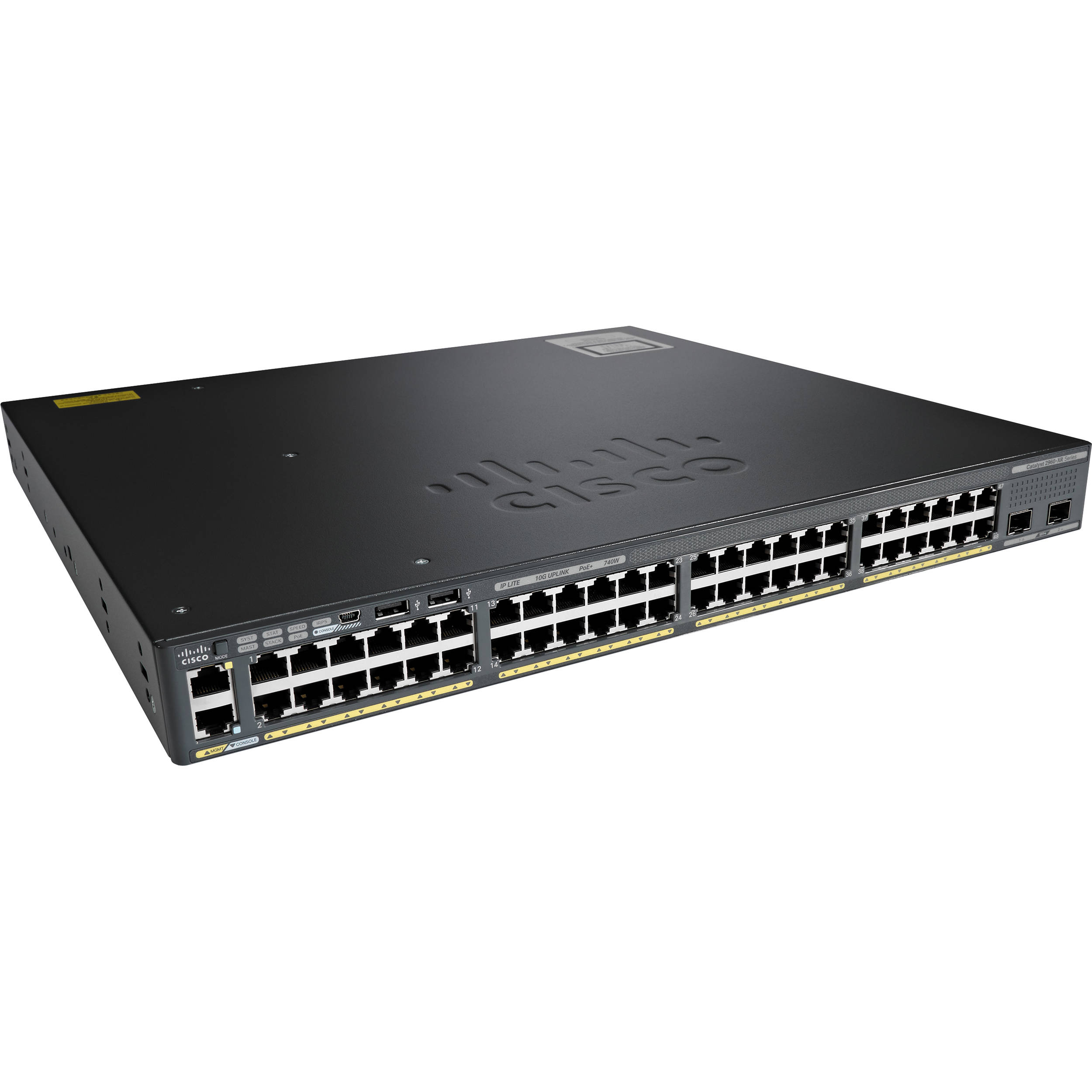

WS-C2960X-48TD-L: Catalyst 2960-X 48 GigE, 2 x 10G SFP+, LAN Base, Desktop -24 ports -Managed, Stackable, Rack -mountable 1U
Cisco Catalyst 2960-X series switch is fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications. Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS software features.
The Cisco Catalyst 2960-X series switch is scalable and resilient. With Cisco FlexStack-Plus stacking, which allows stacking of up to 8 switches and delivers 80 Gbps of stacking bandwidth, the Cisco Catalyst 2960-X enables ease of operation and management with a single configuration across the members of the stack. The Cisco Catalyst 2960-X series is resilient, with control plane redundancy across FlexStack-Plus switches. This minimizes traffic disruption if any stack member fails.
The Cisco Catalyst 2960-X series enable intelligent access services, application visibility and control, and best-in-class energy management. Build for application visibility and control, these switches support NetFlow-Lite, which can be used to monitor, capture, and record traffic flows through the network. With industry-leading energy management capabilities such as Cisco EnergyWise to measure and control power usage, Energy Efficient Ethernet (EEE) and Switch and Downlink Hibernation modes to conserve power during periods of inactivity in the network, the Cisco Catalyst 2960-X with up to 80 percent energy savings is the greenest switch in the industry.
Cisco Catalyst 2960-X series switch is simple to deploy, manages, and troubleshoots. As part of the Cisco Unified Access portfolio, the Cisco Catalyst 2960-X series switch is fully integrated with Cisco Prime to offer simple operation from a central location. It can also be managed by Cisco Network Assistant, which features an intuitive GUI where users can easily apply common services across Cisco switches and routers.
|Switch – 48 ports – Managed – stackable|
|Enclosure Type||Desktop, rack-mountable 1U|
|Ports||48 x 10/100/1000 + 2 x 10 Gigabit SFP+|
|Performance||Switching capacity : 216 Gbps
Forwarding performance (64-byte packet size) : 130.9 Mpps
|Capacity||Virtual interfaces (VLANs) : 1023|
|Jumbo Frame Support||9216 bytes|
|Remote Management Protocol||SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI|
|Features||Layer 2 switching, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, RADIUS support, Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), Cisco EnergyWise technology, Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), NetFlow, Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet|
|Compliant Standards||IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1ae, IEEE 802.3az, IEEE 802.1AX|
|Power||AC 120/230 V ( 50/60 Hz )|
|Dimensions (WxDxH)||44.5 cm x 27.9 cm x 4.5 cm|
|Manufacturer Warranty||Limited lifetime warranty|
