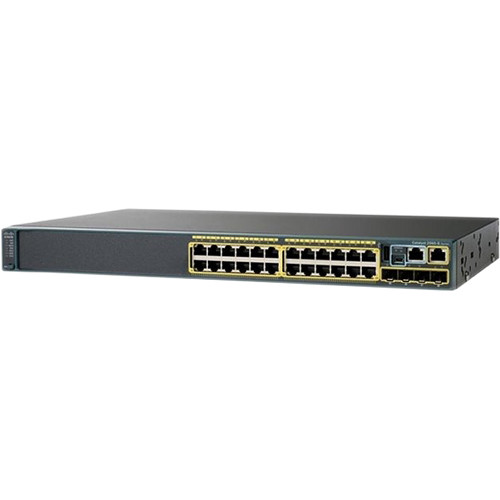

WS-C2960X-24PS-L: Catalyst 2960-X 24 GigE PoE 370W, 4 x 1G SFP, LAN Base, Managed, Stackable, Desktop, Rack- mountable 1U, Gigabit Ethernet
Cisco Catalyst 2960-X series switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications. Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS Software features.
- Network security
The Cisco Catalyst 2960-X series switches provide a range of security features to limit access to the network and mitigate threats.
- Redundancy and resiliency
Cisco Catalyst 2960-X series switches offer a number of redundancy and resiliency features to prevent outages and help ensure that the network remains available.
- Application visibility
Catalyst 2960-X series switches support NetFlow Lite, which enables IT teams to understand the mix of traffic on their network and identify anomalies by capturing and recording specific packet flows.
- Power management
The 2960-X switches offer a range industry leading features for effective energy efficiency and energy management.
- Network management
The Cisco Catalyst 2960-X series switches offer a superior CLI for detailed configuration and administration. 2960-X series switches are also supported in the full range of Cisco network management solutions.
- Intelligent Power over Ethernet Plus
Cisco Catalyst 2960-X series switches support both IEEE 802.3af Power over Ethernet (PoE) and IEEE 802.3at PoE+ (up to 30W per port) to deliver lower total cost of ownership for deployments that incorporate Cisco IP phones, Cisco Aironet wireless access points, or other standards-compliant PoE/PoE+ end devices. PoE removes the need to supply wall power to PoE-enabled devices and eliminates the cost of adding electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments.
|Switch – 24 ports – Managed – stackable|
|Enclosure Type||Desktop, rack-mountable 1U|
|Ports||24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP|
|Power Over Ethernet (PoE)||PoE+|
|PoE Budget||370 W|
|Performance||Switching capacity : 216 Gbps
Forwarding performance (64-byte packet size) : 71.4 Mpps
|Capacity||Virtual interfaces (VLANs) : 1023|
|Jumbo Frame Support||9216 bytes|
|Remote Management Protocol||SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI|
|Features||Layer 2 switching, DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Intrusion Detection System (IDS), IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, RADIUS support, SSH support, Jumbo Frames support, MLD snooping, Dynamic ARP Inspection (DAI), PoE+, Cisco EnergyWise technology, Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), NetFlow, Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet, Multicast VLAN Registration (MVR), Class of Service (CoS), Cisco FlexStack Plus|
|Compliant Standards||IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX|
|Power||AC 120/230 V ( 50/60 Hz )|
|Dimensions (WxDxH)||44.5 cm x 36.8 cm x 4.5 cm|
|Manufacturer Warranty||Limited lifetime warranty|
