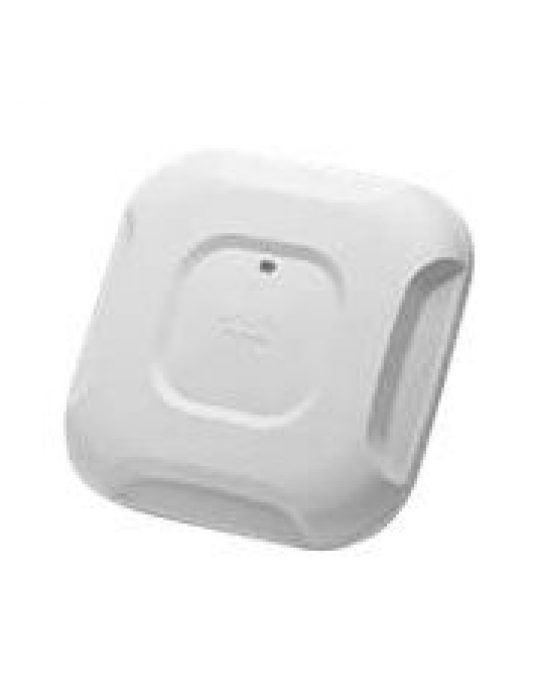

AIR-CAP3702I-C-K9: Cisco Aironet 3700 Series Access Point – 802.11 a/g/n/ac – 2.4GHz – 5GHz – 4*4 MIMO – Control base – Internal antennas, Modular architecture, Radio Access Point, External- Indoor, Cisco
Designed to address the wireless connectivity needs of factories, office and other indoor industrial environment, AIR-CAP3702I-C-K9 is the enterprise class, three-spatial-stream access point with Dual-band, controller-based 802.11a/g/n/ac, internal antennas and C regulatory domain. The IEEE802.11ac with MIMO provides high-throughput wireless local area networks (WLANs) on the 5 GHz band and offers a rate of up to 1.3 Gbps which roughly triple the rate provided by 802.11n Aps. Based on the Cisco Aironet heritage of RF excellence, the 3700 Series utilizes a Purpose-built innovative chipset to provide a high density experience for enterprise network. 4 x 4 MIMO (multiple-input multiple-output) technology with three-spatial-stream offers a greater coverage for more reliability and capacity than competing access points. Modular architecture enables flexible add-on options, which include Wireless Security Module, Cisco Universal Small Cell 5310 Module and Cisco Aironet 802.11ac Wave 2 Module.
With the industry’s only enterprise class 4 x 4 MIMO, three-spatial-stream access points that support the IEEE’s 802.11ac specification, the Cisco Aironet 3700 series delivers industry-leading performance and a High Density Experience (HD Experience) for both the enterprise and service provider markets. The Aironet 3700 series extends support to Wi-Fi clients, such as smartphones, tablets, and high-performance laptops that have integrating 802.11ac support.
In its first implementation, 802.11ac wave 1 provides a rate of up to 1.3 Gbps, roughly triple the rates offered by today’s high-end 802.11n access points. This provides the necessary foundation for enterprise and service provider networks alike to stay ahead of the performance and bandwidth expectations and needs of their wireless users.
Due to its convenience, wireless access is increasingly the preferred form of network connectivity for corporate users. Along with this shift, there is an expectation that wireless should not slow down users’ day-to-day work, but should enable a high-performance experience while allowing users to move freely around the corporate environment.
- High Density Experience (HD Experience)
Building on the Cisco Aironet heritage of RF excellence, the 3700 series utilizes a purpose-built chipset with the best-in-class RF architecture. This chipset provides a High Density Experience for enterprise network designed for mission critical, high performance applications.
The Cisco Aironet 3700 series is a component of the Cisco unified wireless network, which can scale to as many as 18,000 access points with full layer 3 mobility across central or remote locations on the enterprise campus, in branch offices, and at remote sites. The Cisco unified wireless network is the industry’s most flexible, resilient, and scalable architecture, delivering highly secure access to mobility services and applications and offering the lowest total cost of ownership and investment protection by integrating smoothly with the existing wired network.
|Radio access point|
|Form Factor||External – indoor|
|Flash Memory||64 MB|
|Data Link Protocol||IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac|
|Frequency Band||2.4 GHz, 5 GHz|
|Power Over Ethernet (PoE) Supported||PoE+|
|Dimensions (WxDxH)||22.1 cm x 22.1 cm x 5.4 cm|
|Manufacturer Warranty||Limited lifetime warrant|
